Products Description

The development and application of 3D printing materials play an extremely important role in the 3D printing industry. PETG, as a raw material for 3D printing consumables, has some distinct advantages over other materials. PETG granule for 3D filament is widely used in various industries due to its superior properties.

I recommend our petg granule products HF300N,it is the environmentally friendly PETG material without bisphenol A, with excellent transparency and good chemical resistance. It's designed for film/sheet and 3D printing applications. Below is the property list of HF300N.

TYPICAL PROPERTIES	Value	Unit	Standard
MECHANICAL	Value	Unit	Standard
Tensile Stress, break, 50 mm/min	50.0	MPa	ISO527
Tensile Strain, break, 50 mm/min	80.0	%	ISO527
Flexural Stress, break, 50mm in Span, Crosshead Speed: 2 mm/min	70	MPa	ISO178
Flexural Modulus, 50 mm in Span, Crosshead Speed: 2 mm/min	2100	MPa	ISO178
IMPACT	Value	Unit	Standard
Izod Impact, unnotched,80104mm	5.0	KJ/m2	ISO180/1A
Izod Impact, notched,80104mm	6.8	KJ/m2	ISO180/1A
THERMAL	Value	Unit	Standard
HDT/0.45 Mpa, Edgewise Postion, 12712.76.4 Span=100mm	70	°C	ASTM D648
BASIC	Value	Unit	Standard
Melt Mass-Flow Rate (MFR)(250℃,2.16Kg)	<10	g/10min	ASTM D1238
Density	1.29	g/cm³	ASTM D792
OPTICAL	Value	Unit	Standard
Haze (1mm)	<1	%	ASTM D1003
Total Transmittance (1mm)	89	%	ASTM D1003
INJECTION	Value	Unit
Drying Temperature	65	°C
Drying Time	8	hr
Suggested Max Moisture	0.03	%
Rear Temperature	210~220	°C
Middle Temperature	220~235	°C
Front Temperature	235~250	°C
Nozzle Temperature	220~250	°C
Process (Melt) Temperature	210-250	°C

1. Typical values only. Variations within normal tolerances are possible for variose batches. All values are measured at least after 48 hours storage at 23℃,50% relative humidity.

2. Only typical data for material selection purpose. Not to be used for part or tool design.

Products advantage

PETG Granule for 3D Filament has several unique properties that make it ideal for 3D printing applications.

PETG is an environmentally friendly material that helps reduce waste and pollution. It is free from toxic substances and has excellent toughness and chemical resistance, making it an ideal material for industrial applications. PETG granule for 3D filament is also very easy to print and produces no odor during printing, making it a top choice for various projects.

PETG is capable of printing clear, translucent patterns. PETG granule for 3D filament produce high-quality translucent prints that are unmatched by any other material.

In addition to its aesthetics, PETG is highly regarded for its printability, the ability of the 3D printer filament to hold shape and not warp or bend during the printing process. This is due to PETG's low shrinkage rate and excellent thermal stability. PETG granule for 3D filament produces high-quality prints with minimal shrinkage and subtle changes in diameter, making it a highly reliable material for 3D printing applications.

PETG granule for 3D filament has excellent heat resistance makes it an exceptional material for printing parts that require exposure to high temperatures.

Products application

Petg granules are commonly used in the production of sheets, refrigerator drawers, food containers and cosmetic bottles.

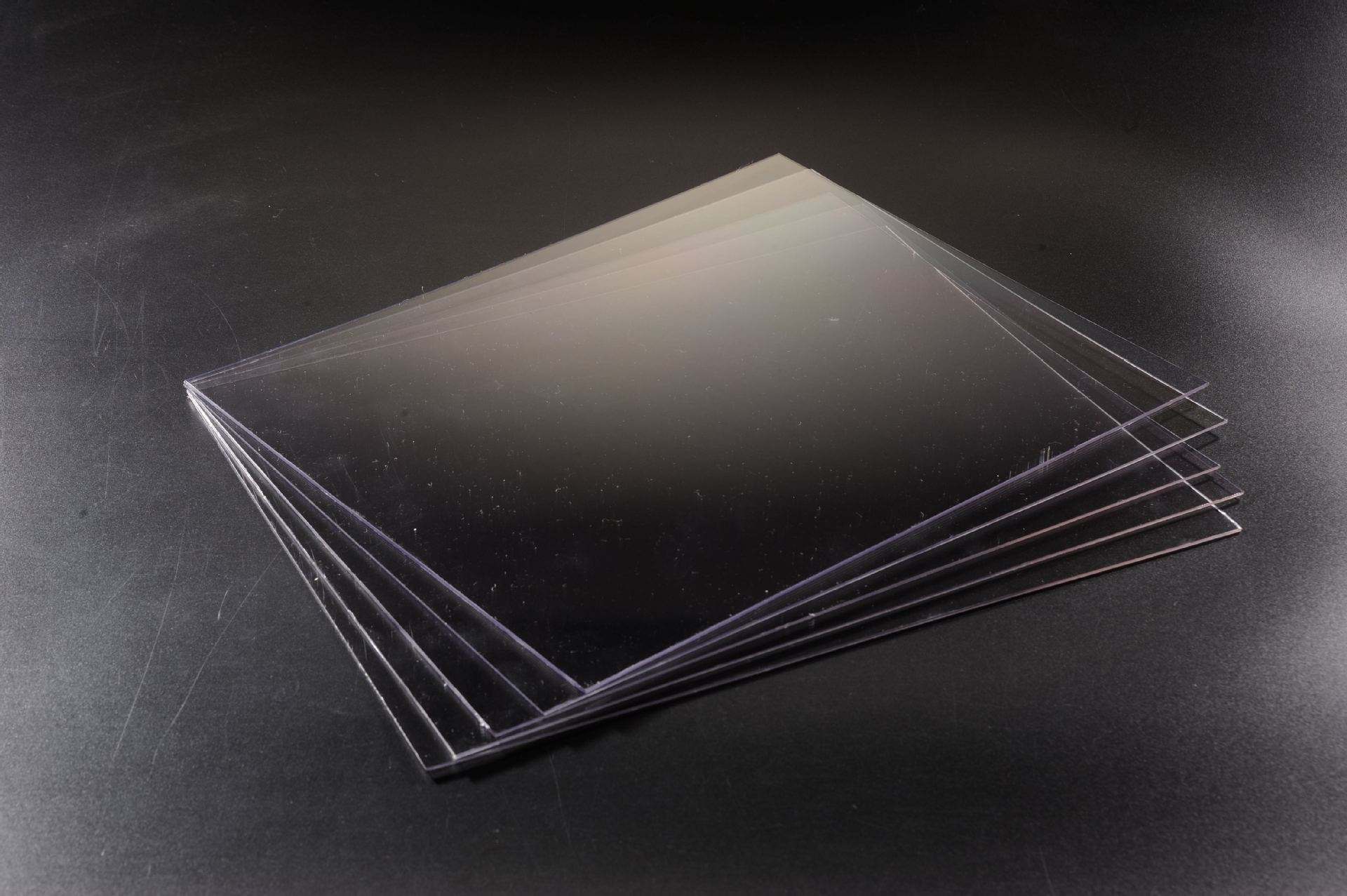

Sheet

Fridge drawer

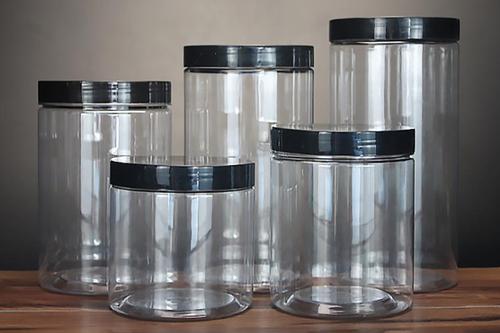

Food container

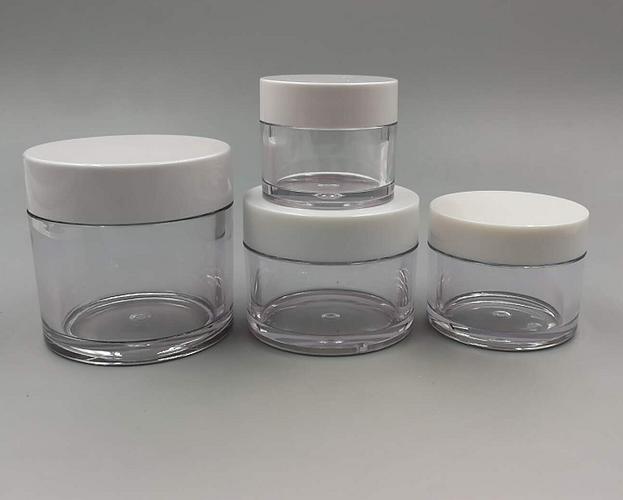

Cosmetics bottle

Why chooes us

Independently developed and has obtained/applied for 7 invention patents
BPA free, high transparency, chemical resistance, and low haze
Widely used in cosmetics packaging, food containers, e-cigarettes, small appliances, medical and other fields
will continue to dedicate itself to the research and development and production of even higher performance Petg sheet material to bring even better service and product experience to customers around the world. If you are interested in our products, please contact us.
